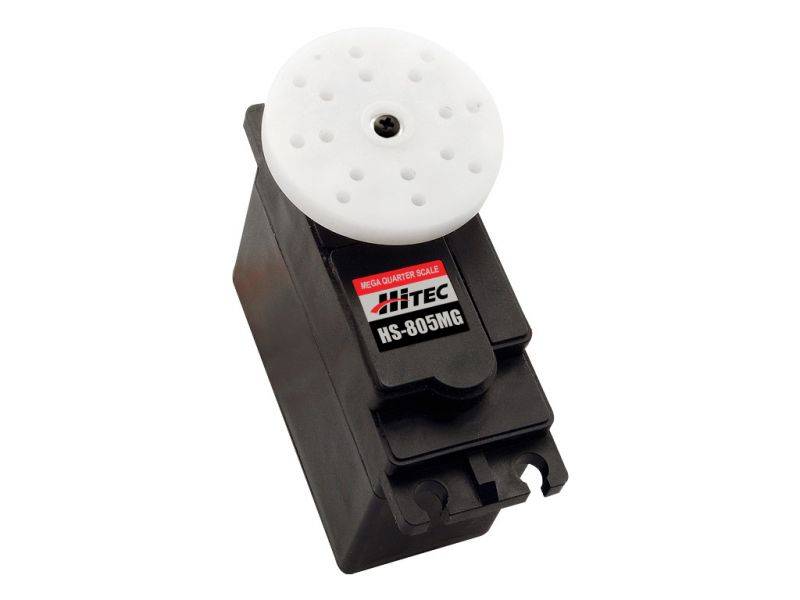

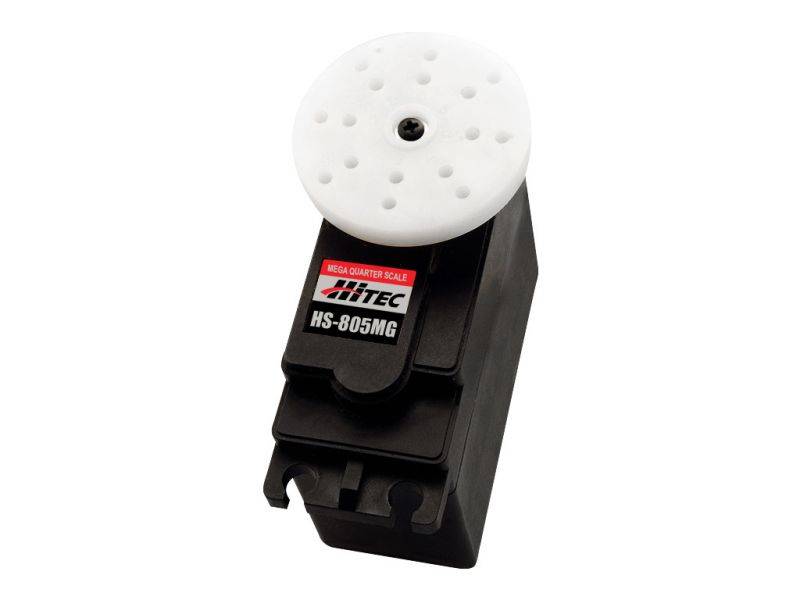

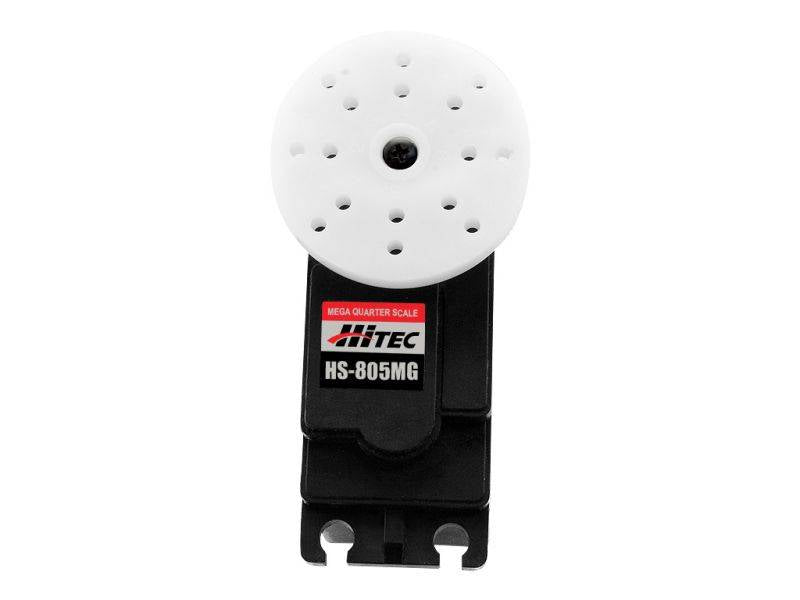

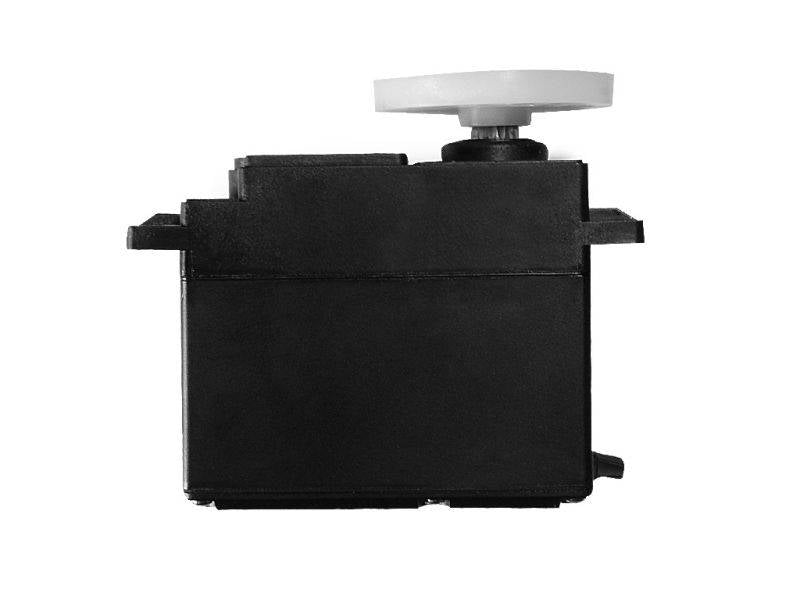

Hitec Giant Scale Servos 805MG

Sold out
Original price $67.99 - Original price $67.99
Original price
$67.99
$67.99 - $67.99
Current price $67.99
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The HS-805MG heavy duty supersized servo was designed to handle the punishment dished out by the latest wave of large 1/5th scale vehicles. With big gears in a big case powered by a big motor this servos was designed to take abuse and keep on going.

Features

  • Large 8mm Output shaft
  • Dual Ball Bearings
  • Heavy Duty Metal Gear Train
  • Water and Dust Resistant Case

Accessories

  • Metal Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-805MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.22 ~ 0.18

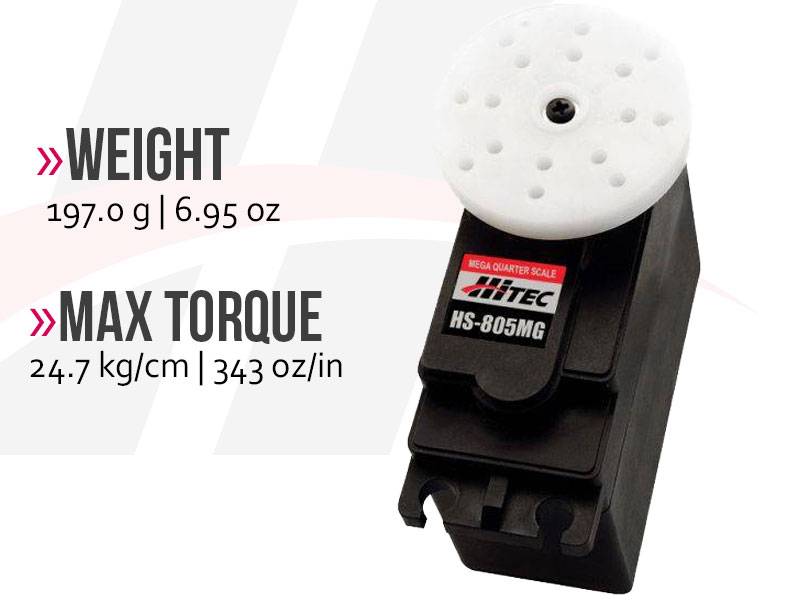

Maximum Torque Range oz. / in. 275 ~ 343
Maximum Torque Range kg. / cm. 19.8 ~ 24.7
Current Draw at Idle 8 mA
No Load Operating Current Draw 520 mA
Stall Current Draw 6,000 mA
Dead Band Width 5 µs

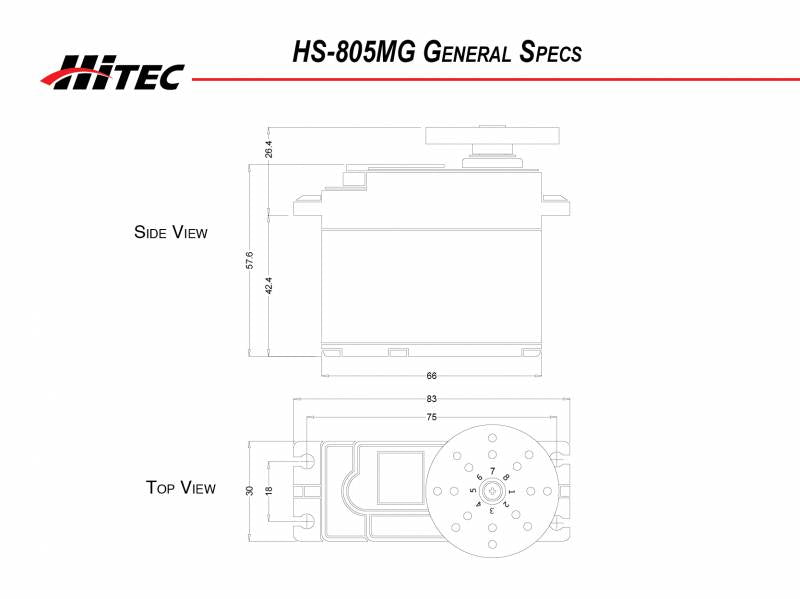

Physical Specifications
Dimensions (Inches) 2.60 x 1.18 x 2.27
Dimensions (Metric) 66.0 x 30.0 x 57.6
Weight (Ounces) 6.95
Weight (Gram) 197.0
Circuit Type HT7003 Analog MosFet
Motor Type 3 Pole Carbon Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Mega 15
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane N / A
Sailplane N / A
3D Performance N / A
Scale 30-40% and >40%
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/4th & 1/5th
Monster Truck 1/4th & 1/5th
Buggies 1/4th & 1/5th
Truggies 1/4th & 1/5th
Short Course / Truck 1/4th & 1/5th
Crawlers N / A
Sail Boat =>1M+ & Scale
Power Boat 1/5th & Up
