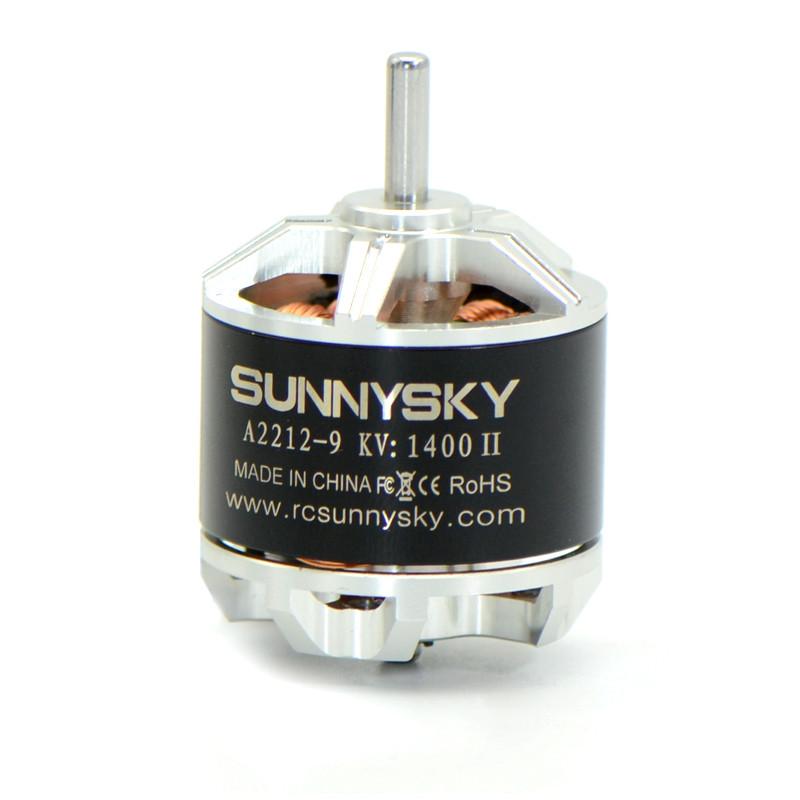

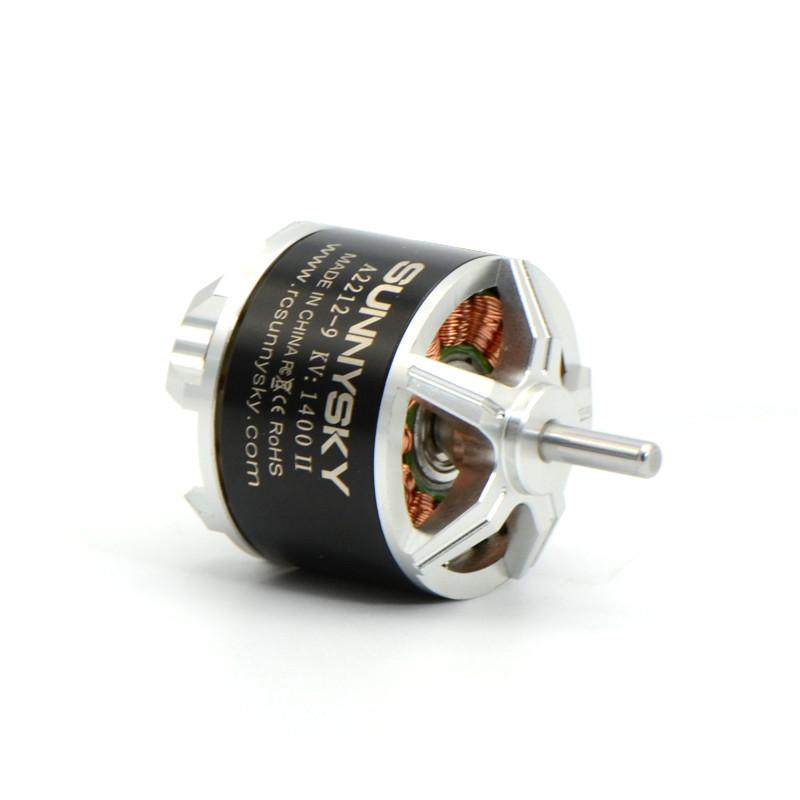

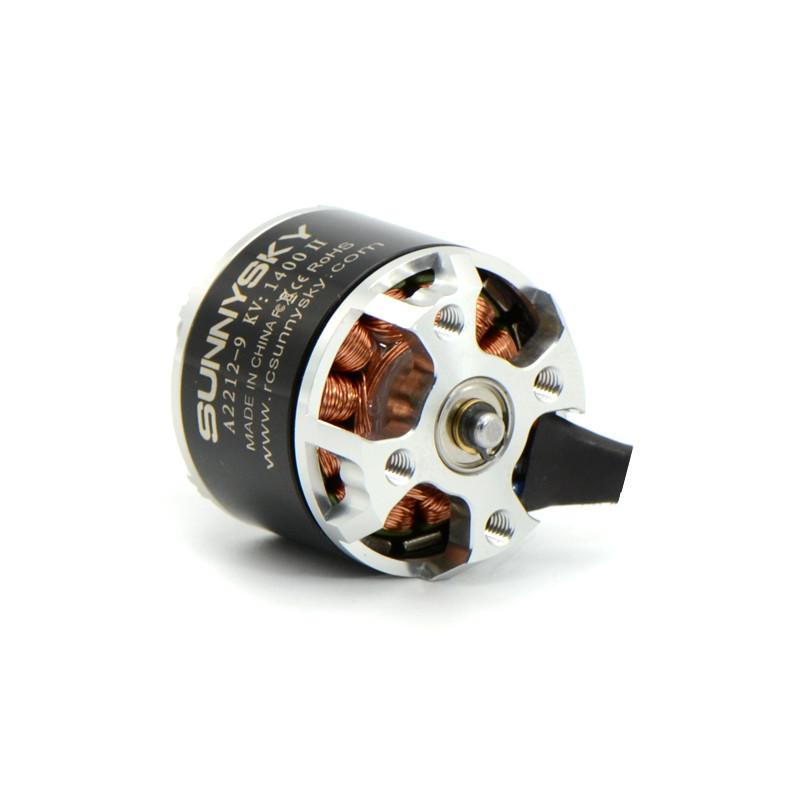

SunnySky A2212 Brushless Motors
Original price
$9.99
-
Original price
$9.99
Original price
$9.99
$11.99
$11.99
-
$11.99
Current price
$11.99
SKU SS-A2212-980
[TABS]OVERVIEW
KV980
Stator Diameter | 22mm | Weight | 56g |
---|---|---|---|
Stator Thickness | 12mm | Rotor Diameter | 27.5mm |
No.of Stator Slots | 12 | Body Length | 40mm |
No.of Rotor Poles | 14 | Max Lipo Cell | 3-4S |
Motor Kv | 980 | ESC | 20A |
No-load current | 0.7A/10V | Recommended Prop(inch) | 9045 |
Motor Resistance | 123mΩ |
|
|
Max Continuous Current | 20A/30s | ||
Max Continuous Power | 330W |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
9450 | 11.1 | 0.9 | 100 | 10 | 10.01 | 112℃ |
1.9 | 200 | 21 | 9.48 | |||
3.2 | 300 | 36 | 8.45 | |||
4.6 | 400 | 51 | 7.83 | |||
6.2 | 500 | 69 | 7.27 | |||
8 | 600 | 89 | 6.76 | |||
10.2 | 720 | 113 | 6.36 | |||
12.5 | 0.7 | 100 | 9 | 11.43 | ||
1.7 | 200 | 21 | 9.41 | |||
2.9 | 300 | 36 | 8.28 | |||
4.2 | 400 | 53 | 7.62 | |||
5.6 | 500 | 70 | 7.14 | |||
7.3 | 600 | 91 | 6.58 | |||
9 | 700 | 113 | 6.22 | |||
11.9 | 860 | 149 | 5.78 | |||
14.8 | 0.6 | 100 | 9 | 11.26 | ||
1.5 | 200 | 22 | 9.01 | |||
2.5 | 300 | 37 | 8.11 | |||
3.7 | 400 | 55 | 7.3 | |||
5 | 500 | 74 | 6.76 | |||
6.4 | 600 | 95 | 6.33 | |||
8 | 700 | 118 | 5.91 | |||
9.7 | 800 | 144 | 5.57 | |||
11.6 | 900 | 172 | 5.24 | |||
13.5 | 1000 | 200 | 5.01 | |||
15 | 1090 | 222 | 4.91 | |||
16.5 | 0.5 | 100 | 8 | 12.12 | ||
1.4 | 200 | 23 | 8.66 | |||
2.3 | 300 | 38 | 7.91 | |||
3.5 | 400 | 58 | 6.93 | |||
4.6 | 500 | 76 | 6.59 | |||
6 | 600 | 99 | 6.06 | |||
7.5 | 700 | 124 | 5.66 | |||
8.9 | 800 | 147 | 5.45 | |||
10.5 | 900 | 173 | 5.19 | |||
12.5 | 1000 | 206 | 4.85 | |||
14.3 | 1100 | 236 | 4.66 | |||
16.6 | 1220 | 274 | 4.45 |
[/TABS]
