Product Description

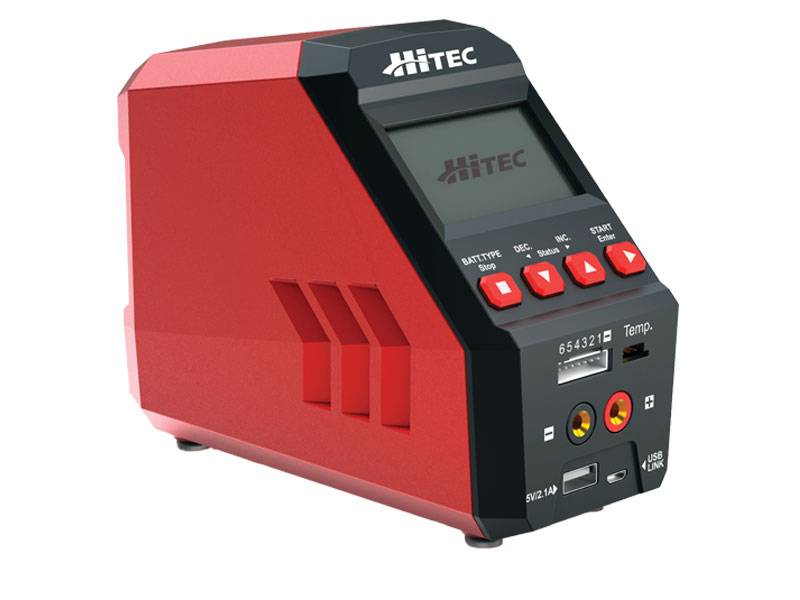

The RDX1 Pro is a high-performance, microprocessor-controlled charger/discharger with battery management capabilities suitable for most popular battery types. Featuring an integrated six-cell balancer for all Lithium chemistries including the latest high voltage Lithium-Polymer (LiHV) cells, this AC/DC professional-grade unit offers a maximum charge power of 100 watts! Our Charge Master software feature allows convenient, optional control using your own PC. Its slim, inline, tower design with easily-accessible front ports make this handy space saver a must-have in the workshop! Charge like a RDX1 PRO with Hitec!
Features
- Slim, Compact, Inline, Tower Design
- Optimized Operating Software
- Automatic Data Save
- Charges All Popular Battery Chemistries
- Integral Lithium Battery Balancer
- PC Control, Using Hitec’s Charge Master Software

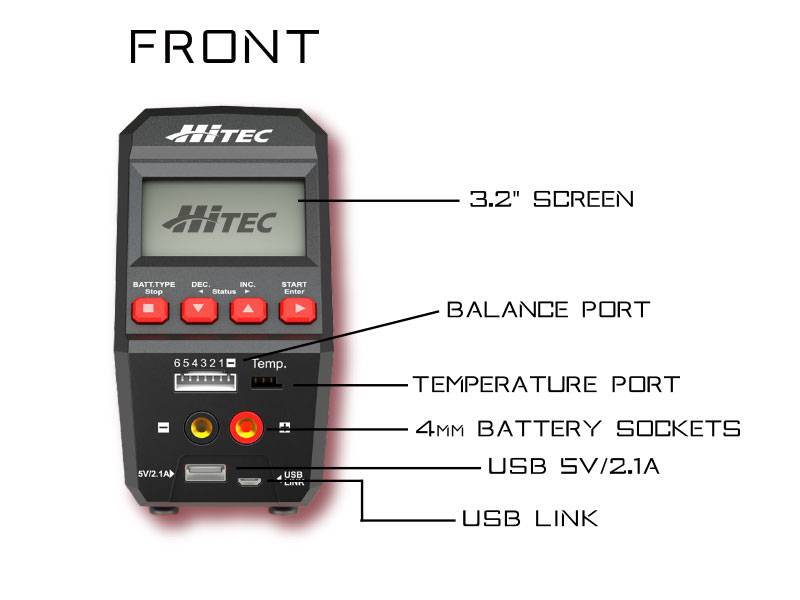

- 3.2 Inch, Easy-to-Read Screen
Charging Specifications

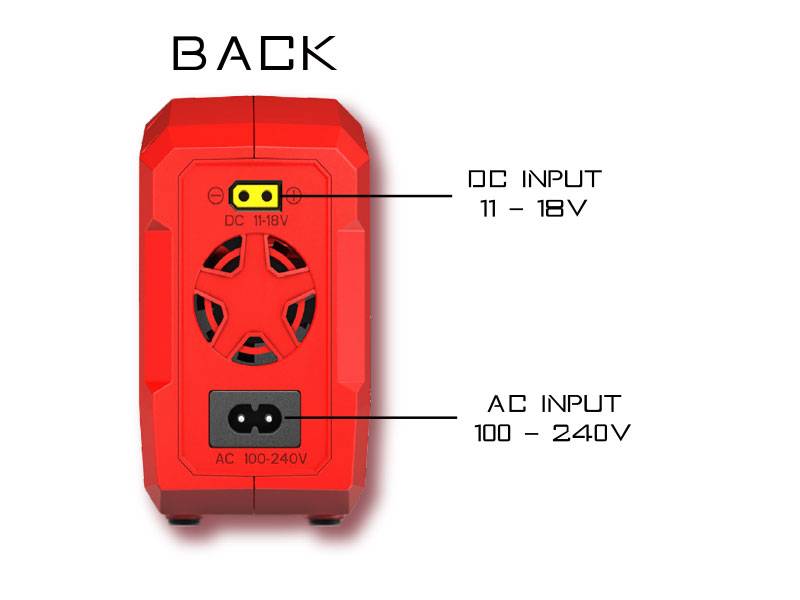

- AC Input: 100-240 Volts AC
- DC Input: 11-18 Volts DC
- Maximum Charge Power: 100 Watts
- Charge Current Range: 0.1 – 10.0 Amps
- Maximum Discharge Power: 10 Watts
- Discharge Current Range: 0.1 – 2.0 Amps
- Balancing Port Current Drain: 300mA per Cell
- NiCd/NiMH Battery Cell Count: 1-15 Cells
- LiPo/LiHV/LiFe/LiIon Cell Count: 1-6 Cells
- Pb Battery Voltage: 2-20 Volts
- Dimensions: 6.26 x 2.85 x 4.84 in. (159 x 72.5 x 123mm)
- Weight: 16.6 oz. (470g)
Hitec Charge Master Software 2.03 for RDX Series and One Channel X Series Chargers*
*For use with chargers with internal USB output
**Note: To program and save presets in Windows 10, you must run this software as administrator.
